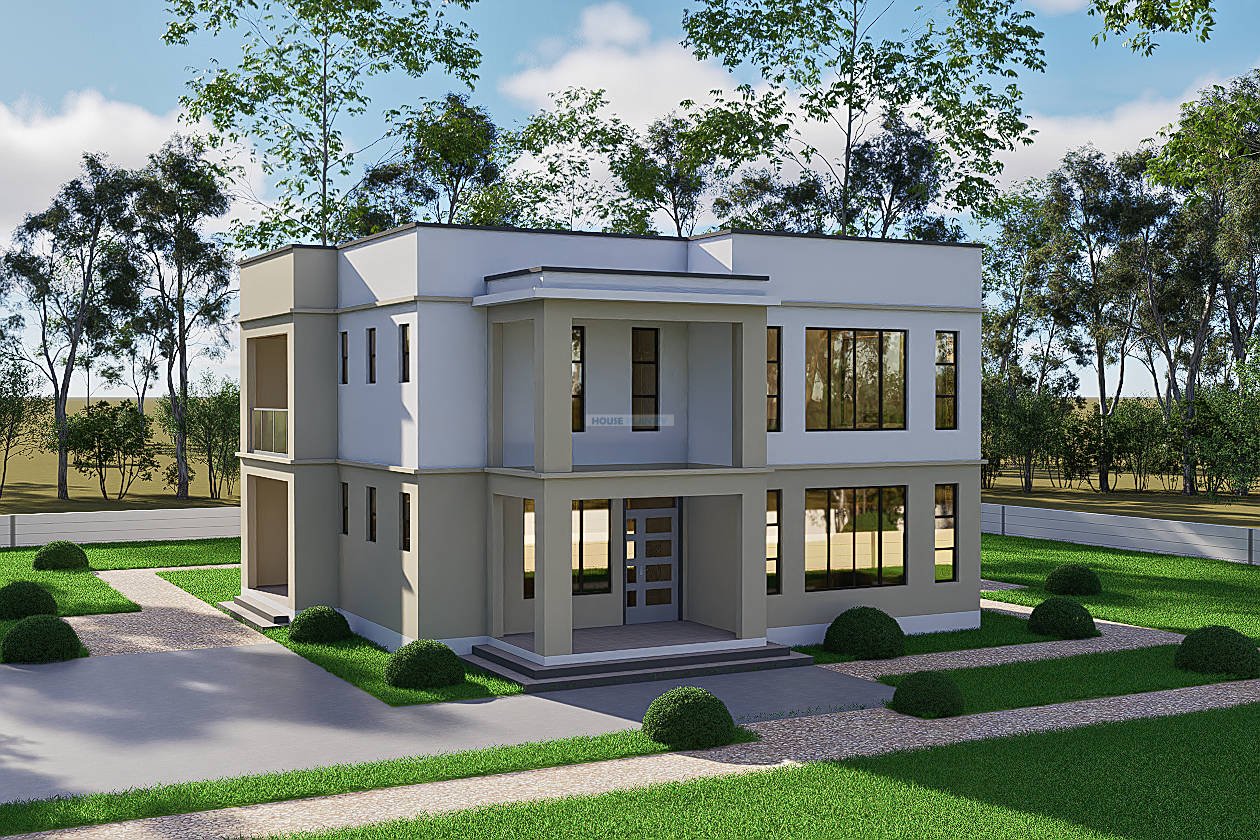

2406B Front view- 4 Bedroom Maisonette

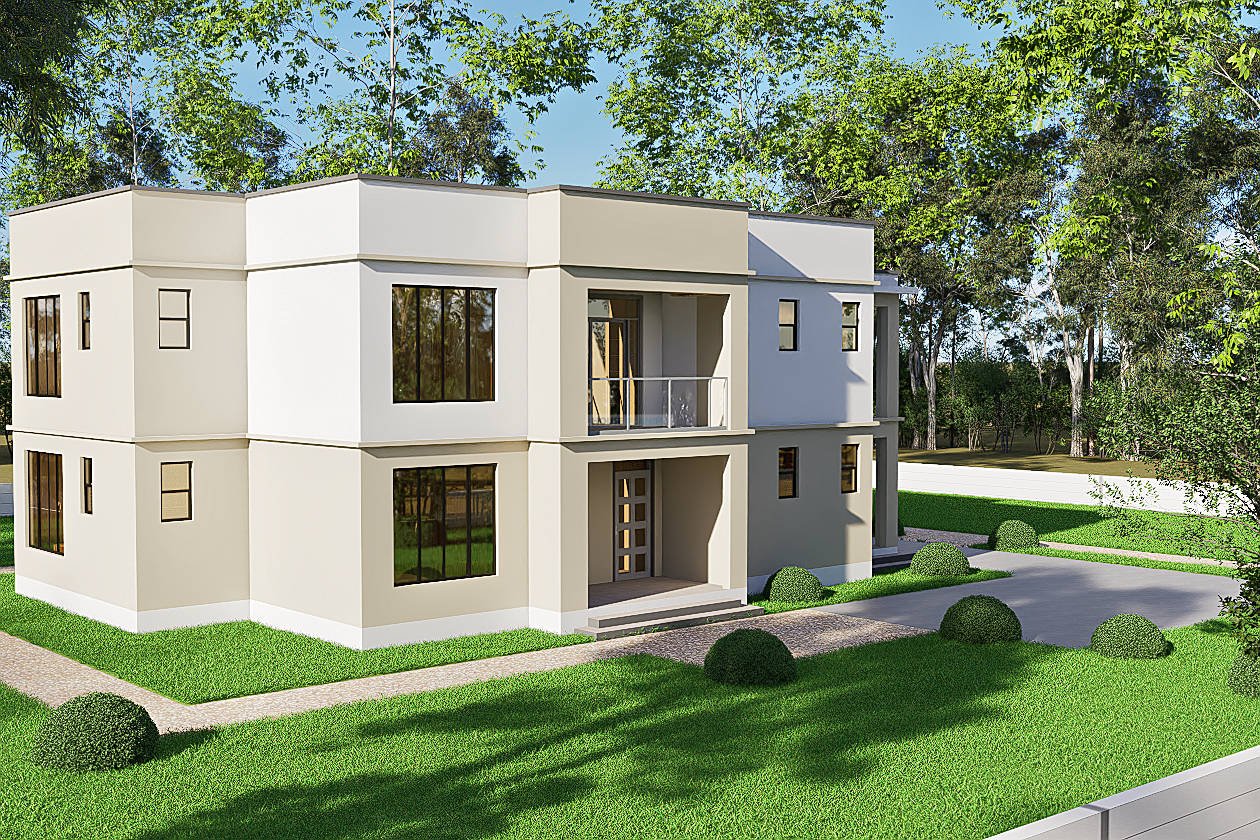

2406b kicthen porch view

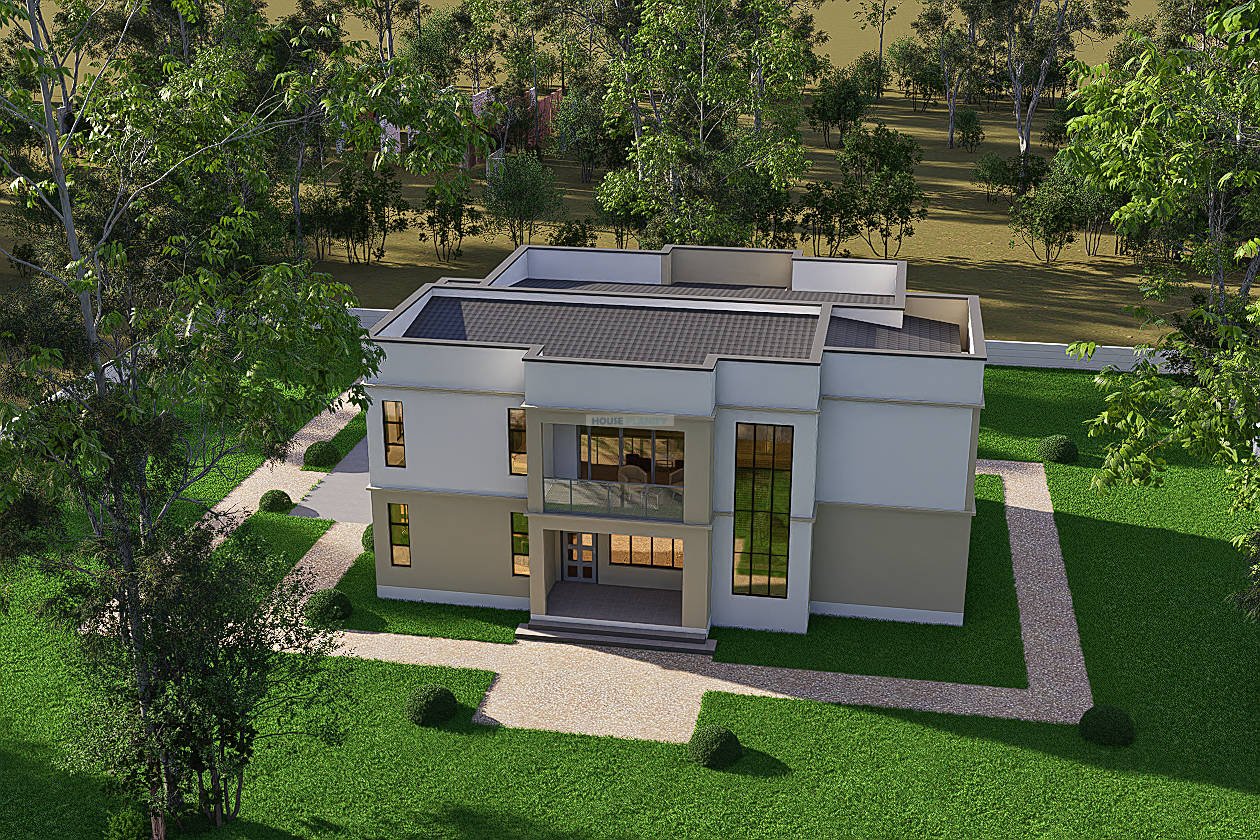

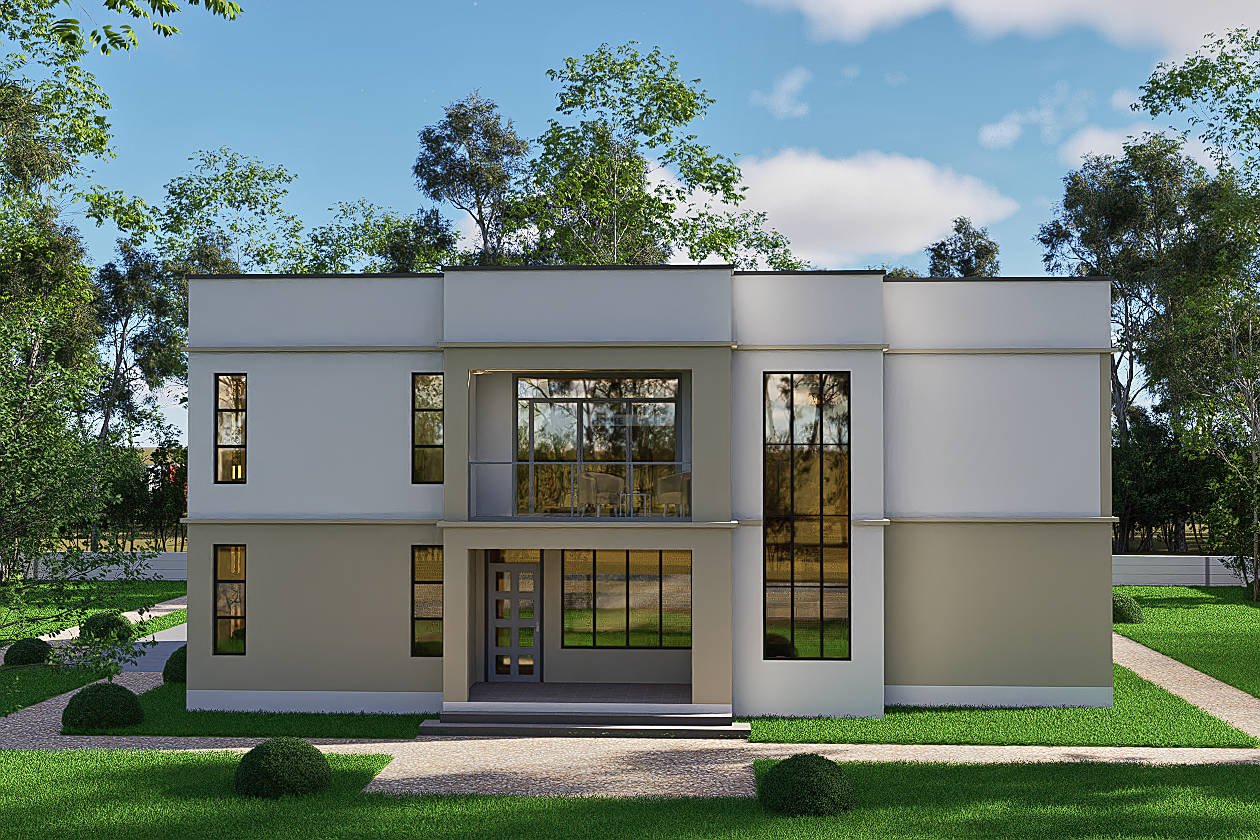

2406b birds eye view of rear porch

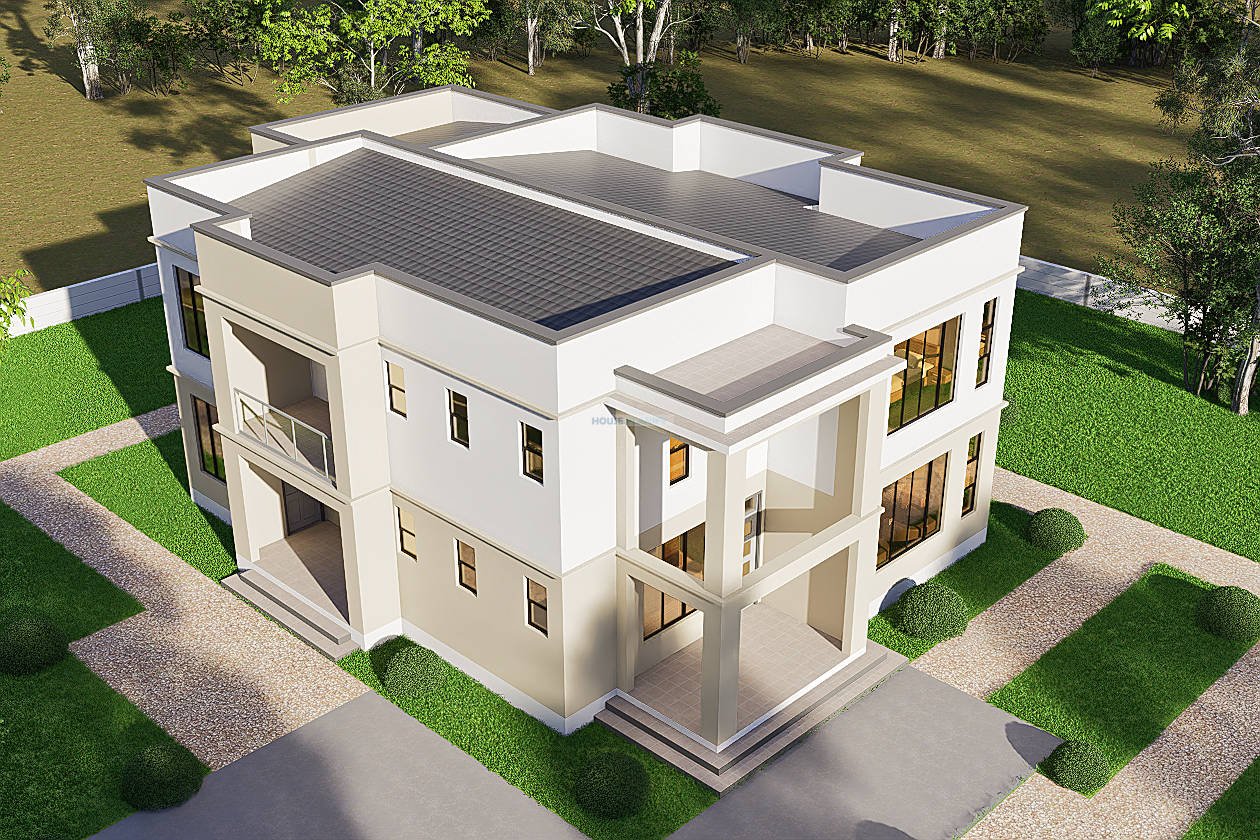

2406b birds eye view of 4 bedroom modern maisonette

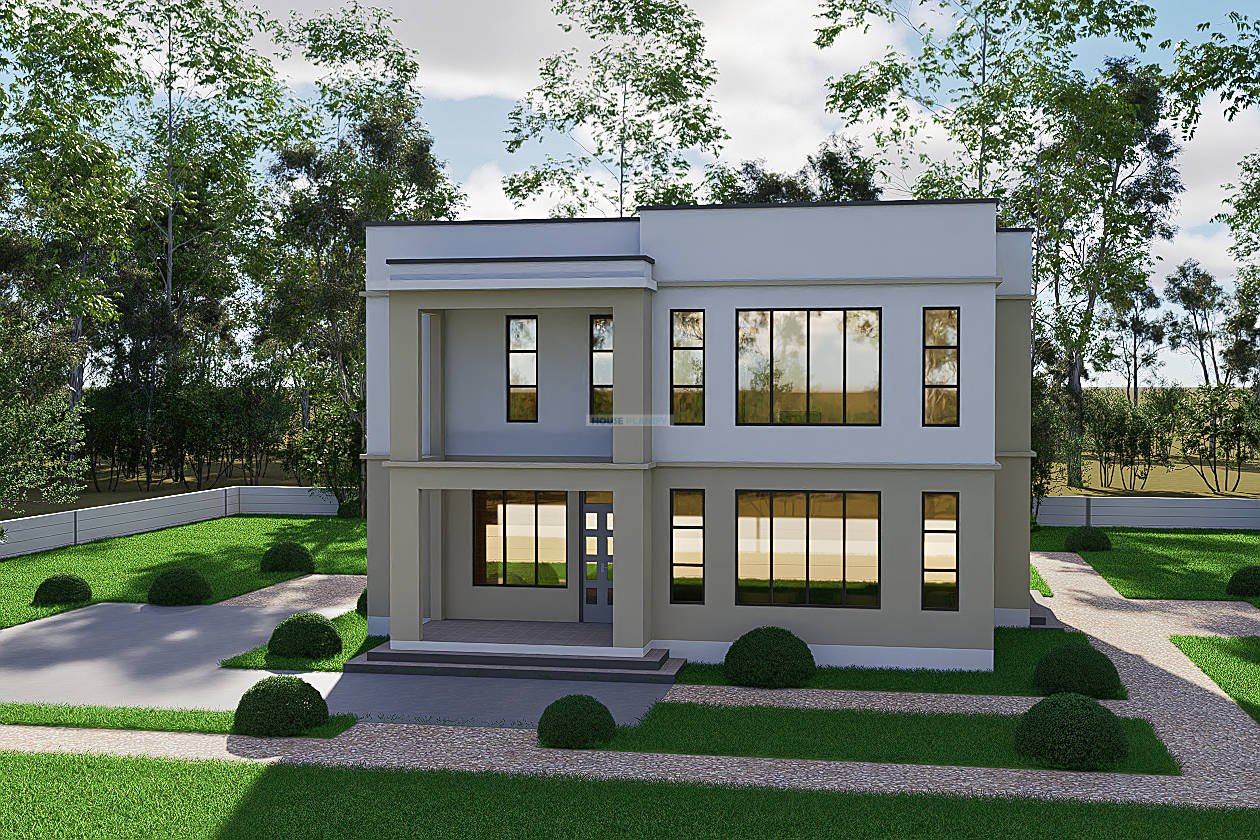

2406b 4 bedroom modern maisonette with hidden roof

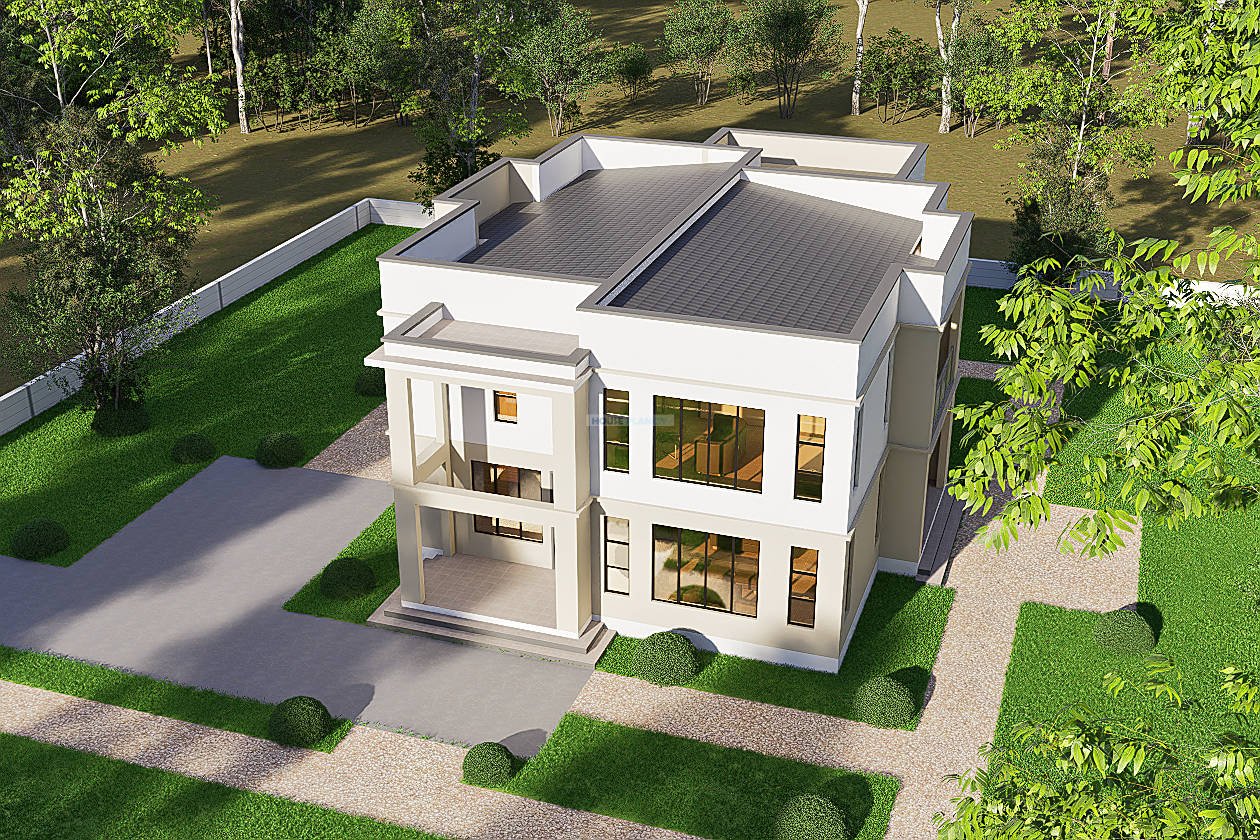

2406b 4 bedroom maisonette front view, birds eye view

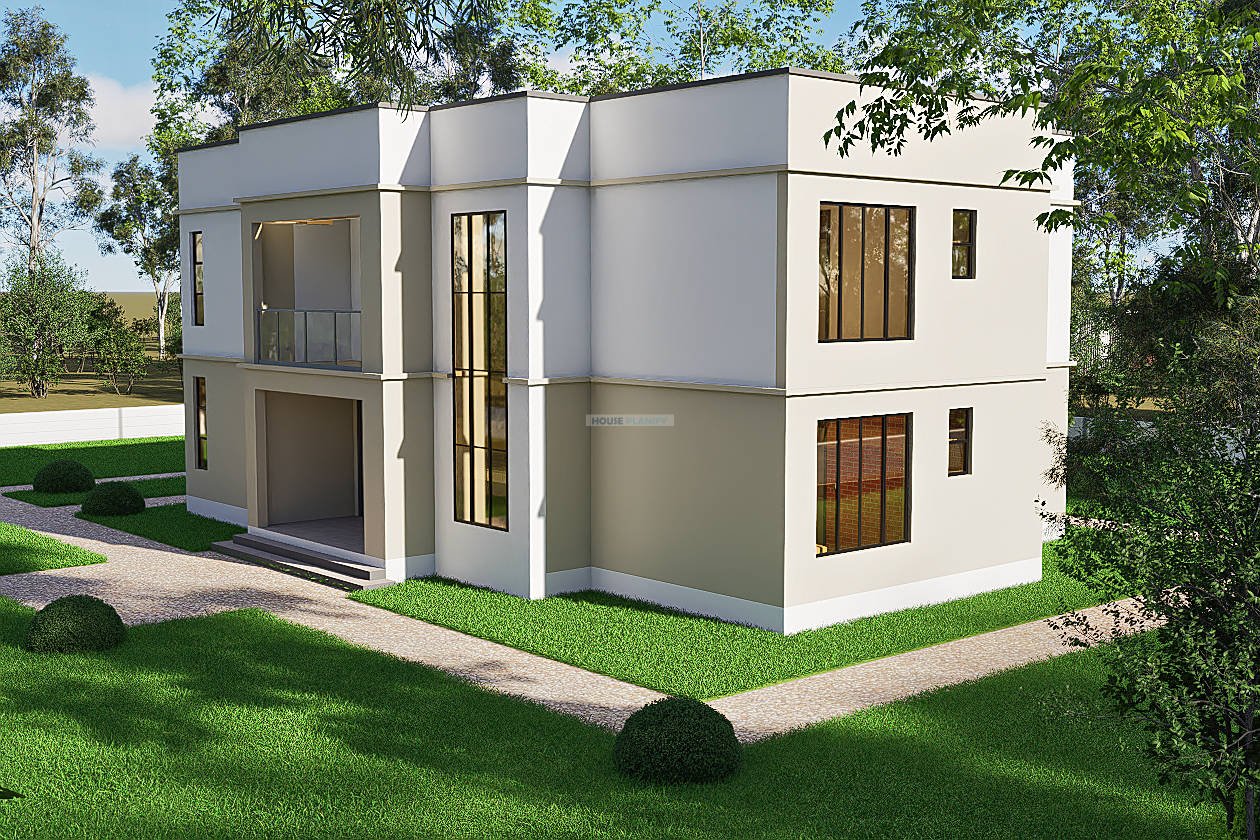

2406b - side view 2

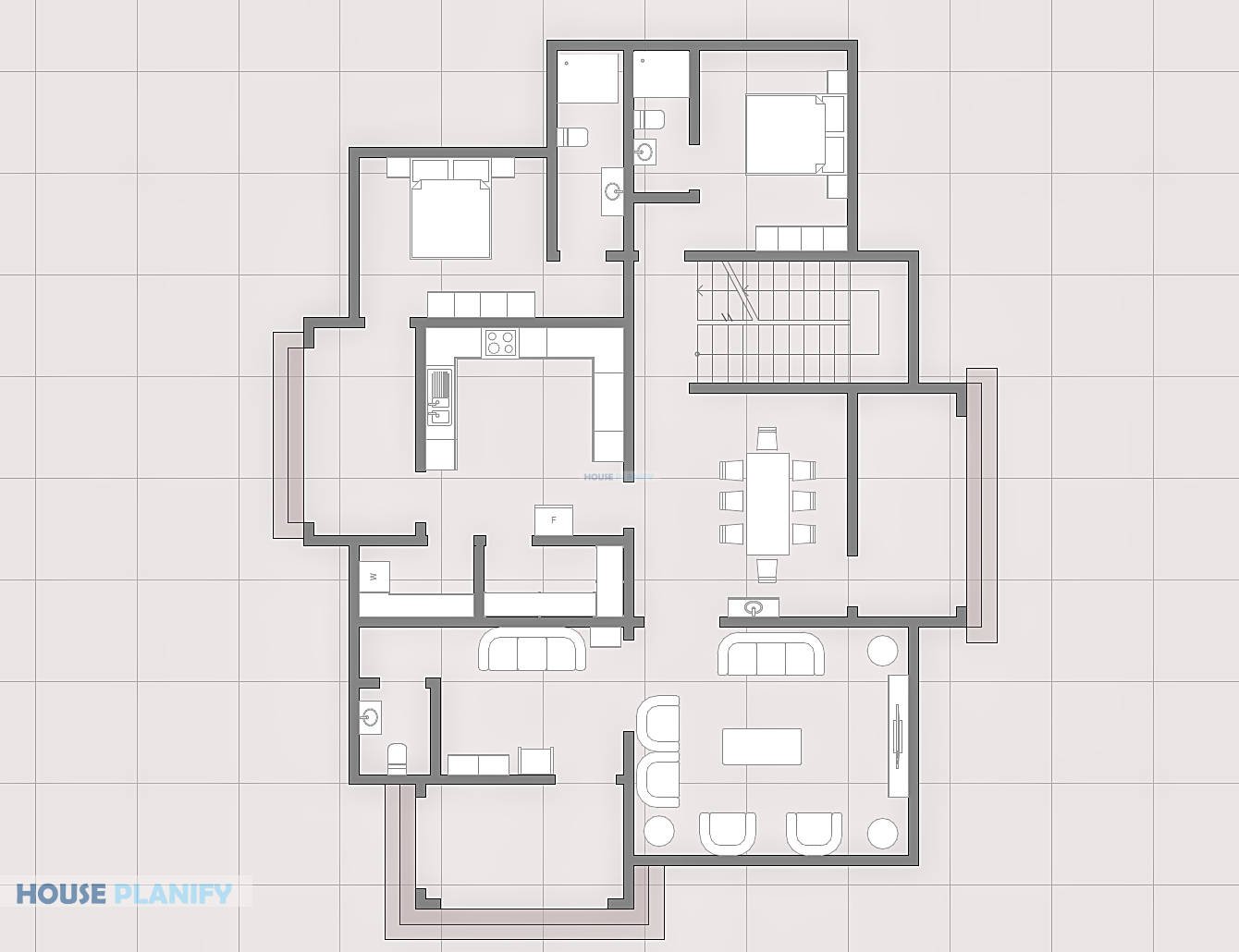

2406B - 4 Bedroom Maisonette Floor Plan

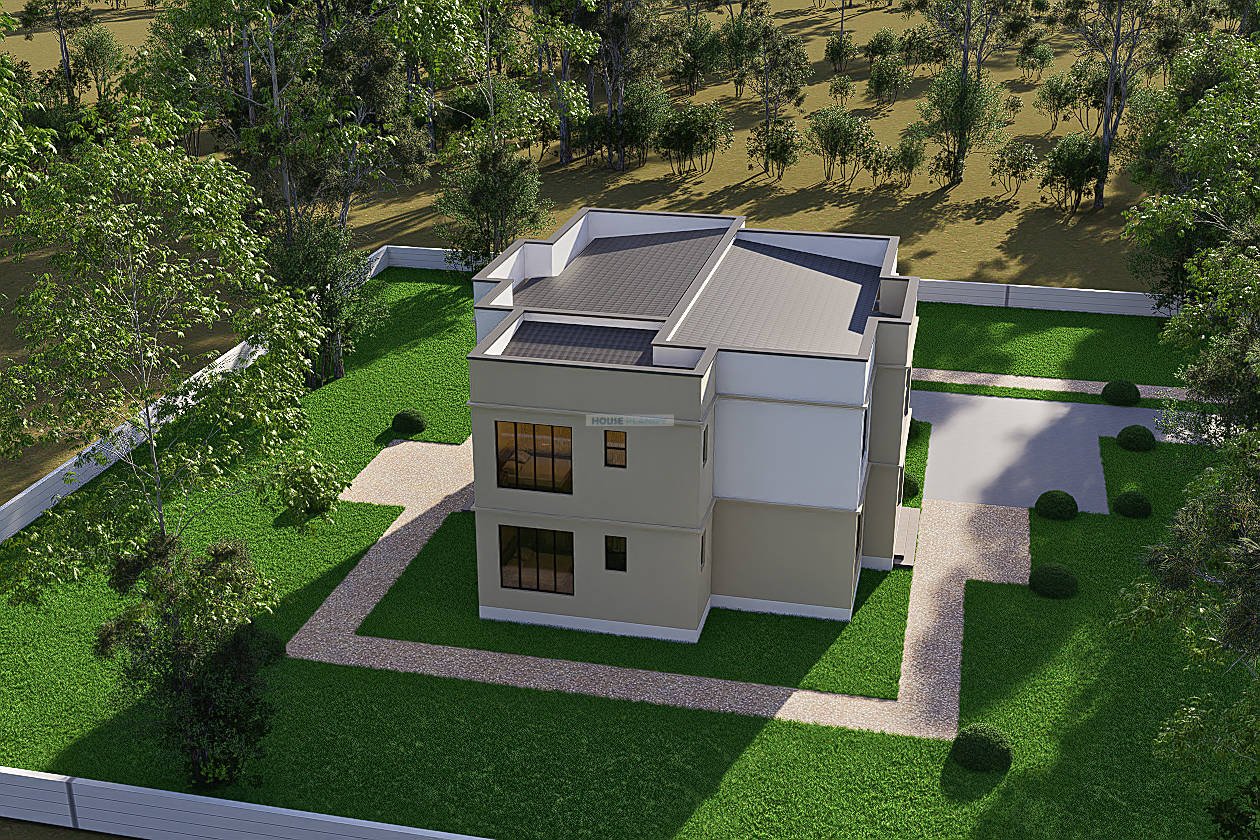

2406b top view MAISONETTE

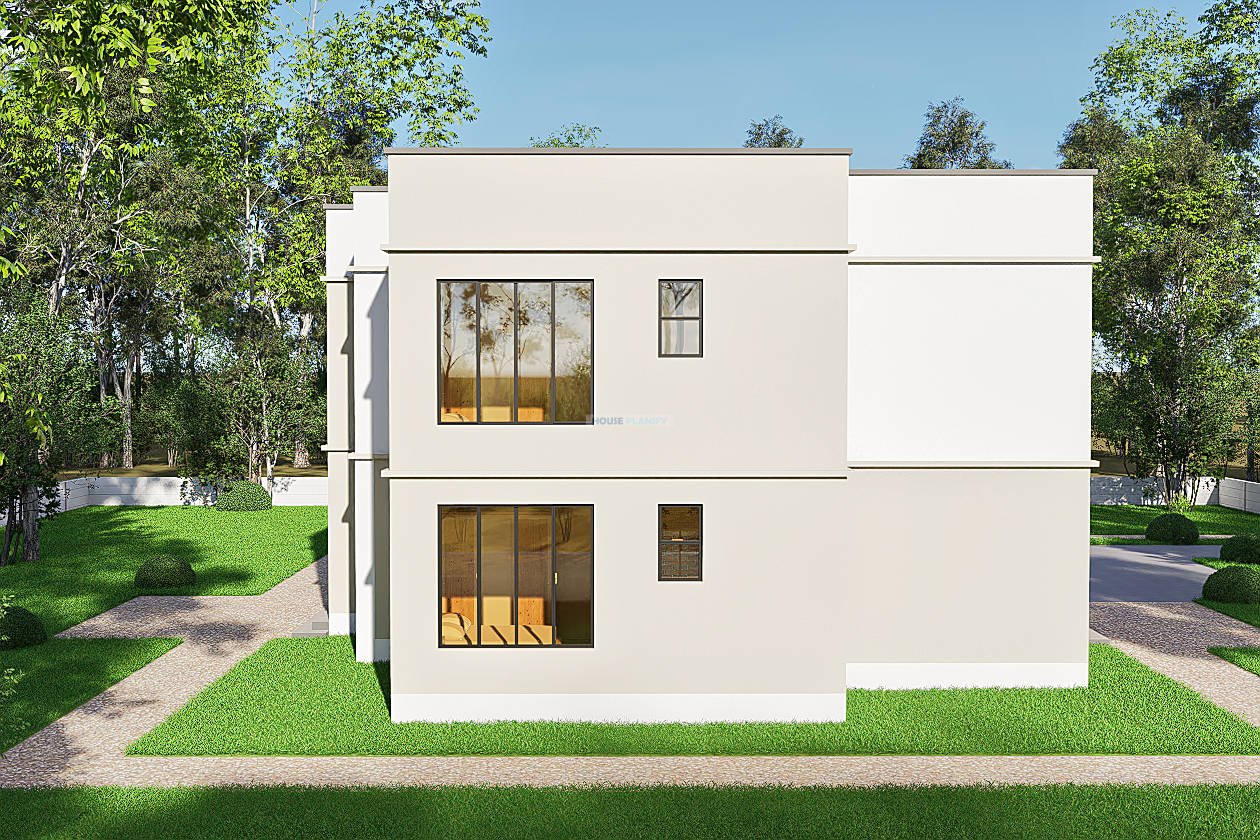

2406b side view 3
4 Bedroom Hidden Roof Modern Maisonette 2406B - Image 11

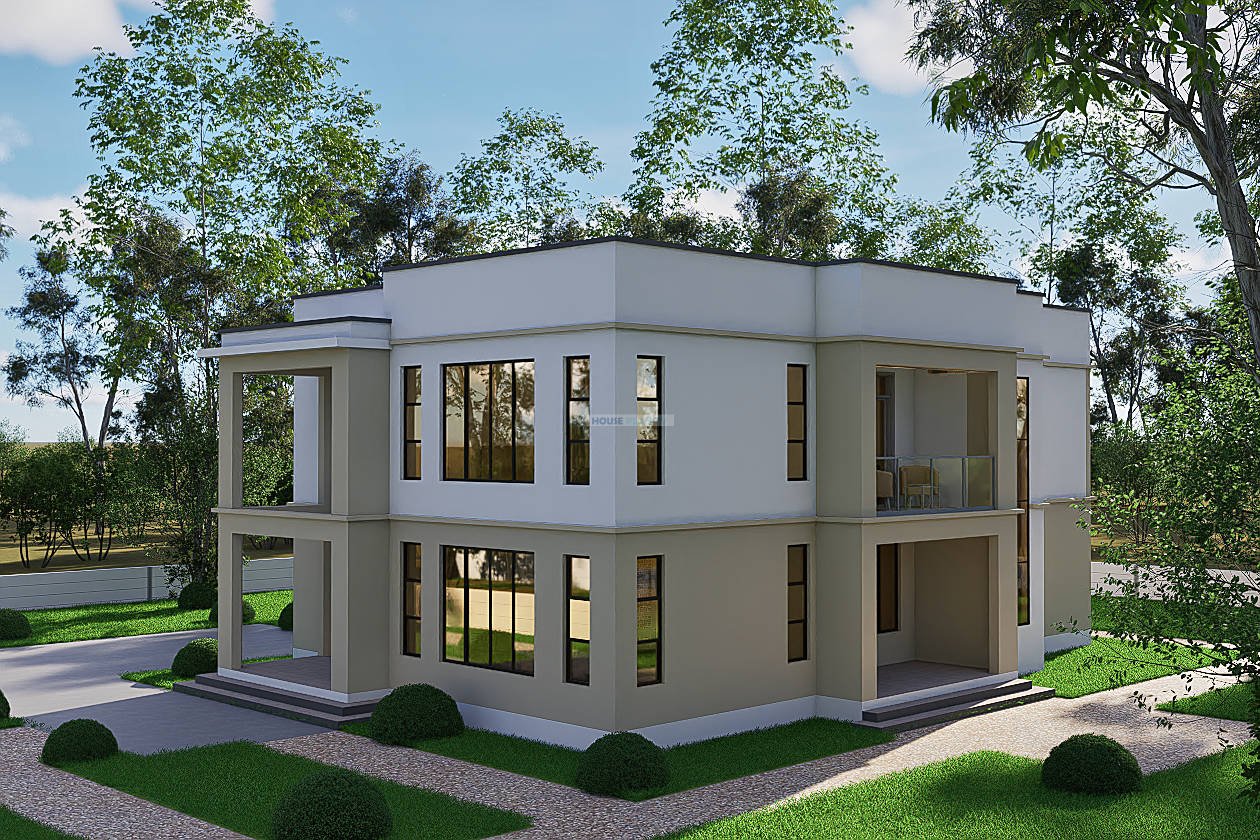

2406b modern 4 bedroom flat roof maisonette

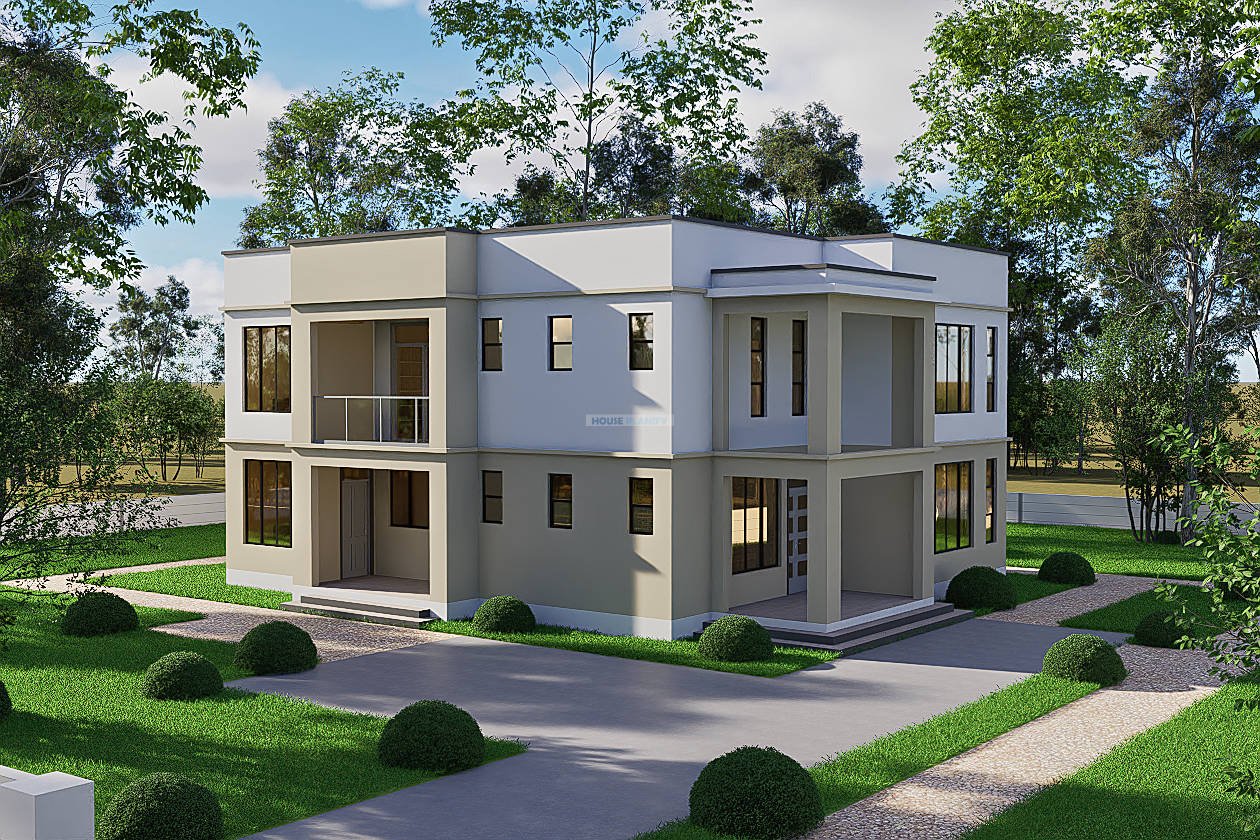

2406B Maisoneete with 4 bedrooms - Flat roof

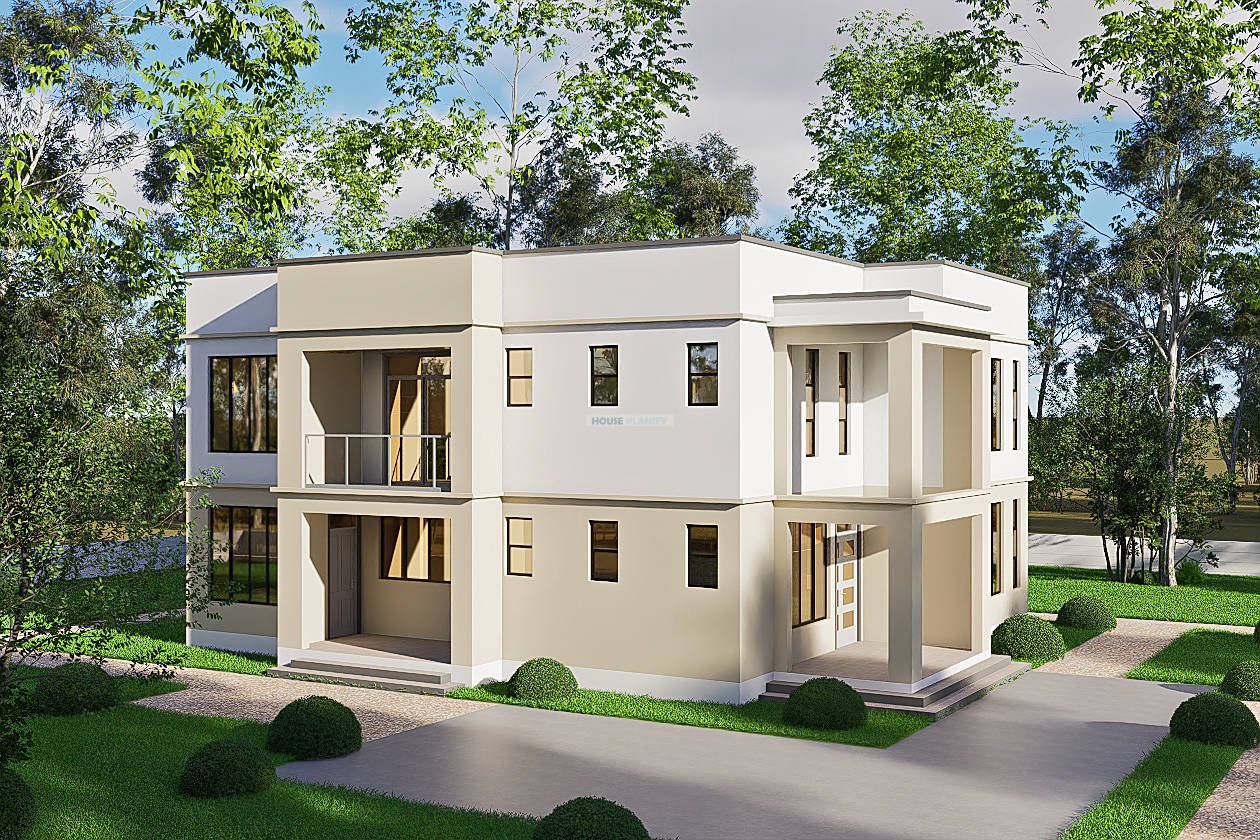

2406b kitchen view, 4 bedroom, flat roof, parking
2406B Front view- 4 Bedroom Maisonette

4 Bedroom Hidden Roof Modern Maisonette 2406B

$389.00

his elegant 4 bedroom modern house plan combines contemporary architecture, spacious interiors, and practical family living. Designed with a sleek hidden roof featuring an 8 degree roof pitch, the home offers 336 m² of well planned living space across two storeys.

The ground floor features a large front porch, welcoming foyer, spacious living room, square dining area, closed kitchen with pantry, kitchen porch, dining porch, laundry, powder room, guest bedroom, attached domestic help quarters, and a central stair lobby. Large windows throughout the home create bright and airy interiors filled with natural light.

Upstairs, the luxurious master suite includes a walk in closet and private ensuite bathroom. Two additional ensuite bedrooms provide comfort and privacy, while the family room and home office each enjoy access to a balcony. Additional storage spaces and a secure safe room enhance the home’s functionality.

With its flowing floor plan, spacious rooms, and clean modern design, this house plan is ideal for families seeking comfort, style, and efficient use of space.

Guaranteed Safe Checkout
  • Mpesa Icon

4 Bedroom Modern Hidden Roof House Plan | 336 m²

GROUND Floor spaces include

  1. Large front porch
  2. Foyer
  3. Powder room
  4. Living room
  5. Dining
  6. Dining porch
  7. Closed kitchen
  8. Kitchen pantry
  9. Laundry
  10. Kitchen porch
  11. Stair lobby
  12. Guest bedroom
  13. Attached domestic help quarters

1st floor spaces

  1. Ensuite master bedrooms with walk in closet
  2. Family room with balcony
  3. Storage spaces
  4. Office with a balcony
  5. Safe room
  6. Ensuite bedroom 01
  7. Ensuite bedroom 02

House Plan Features

• 4 Spacious Bedrooms
• Modern Hidden Roof Design
• 8 Degree Roof Pitch
• Contemporary Two Storey Layout
• Large Front Porch
• Elegant Entrance Foyer
• Spacious Living Room
• Square Dining Area
• Outdoor Dining Porch
• Closed Kitchen Layout
• Kitchen Pantry
• Kitchen Porch
• Laundry Room
• Powder Room
• Guest Bedroom
• Attached Domestic Help Quarters
• Family Room with Balcony
• Dedicated Home Office with Balcony
• Walk In Closet in Master Suite
• Safe Room
• Multiple Storage Spaces
• Flowing Floor Plan
• Large Windows for Natural Lighting
• Spacious Contemporary Design

Building Dimensions: 12 m × 11 m
Total Floor Area: 336 m²
Minimum Recommended Plot Size: 16 m × 15 m
Bedrooms: 4
Bathrooms: Multiple Bathrooms Including Ensuite Bedrooms and Powder Room
House Style: Modern Hidden Roof House
Roof Type: Hidden Roof
Roof Pitch: 8 Degrees
Floors: 2 Storeys

Bedrooms

Garage Bays

Floor Area

Home Features

, , ,

Kitchen & Utility Features

, , , ,

Bedroom & Bath Features

, , , , , ,

Outdoor Features

, ,

Roof Type

Storeys

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

What's Included in this House Plan Drawing Set?

A complete drawing package prepared for construction clarity and ease.

✔ Included Drawings

1. Cover Sheet 2. Floor Plan 3. Foundation Plan 4. Roof Plan 5. Exterior Elevations 6. Building Sections 7. Electrical Layout 8. Plumbing Layout 9. Window Schedule 10. Door Schedule 11. Roof Details 12. Gutter Detail 13. Eave Details 14. Septic Tank Detail 15. Finishes Schedule 16. General Notes 17. Electrical Notes 18. Plumbing Notes 19. 3D Renders 20. Other Misc Details

✖ Not Included

1. Architectural & Engineering Stamps 2. Site Plan (land dependent) 3. Structural Calculations 4. BOQ & Contractor Pricing

📦 After Purchase

1. Instant download via account 2. All drawings in one PDF 3. Recommended print: A3
