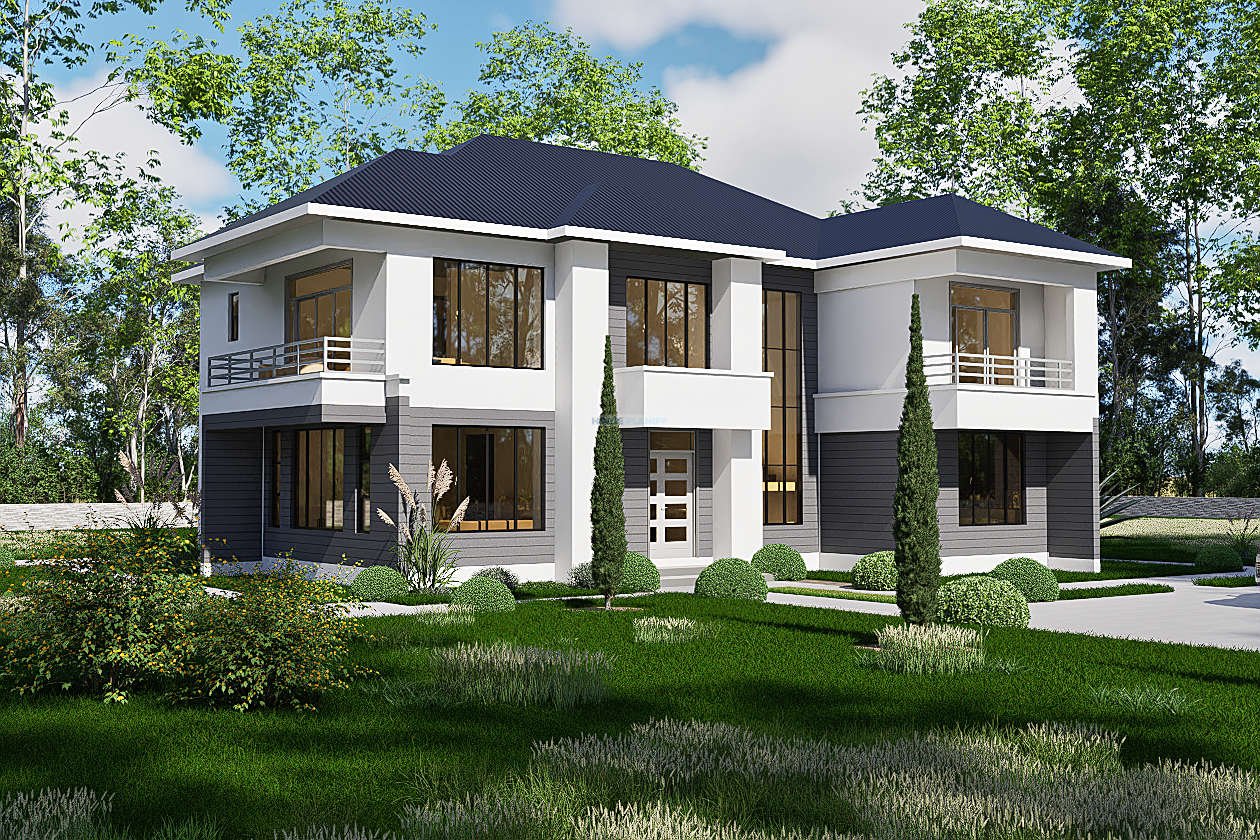

5 Bedroom Hip and Gable Roof Modern Maisonette House Plan – 2511A

$409.00

Combining timeless architectural appeal with modern family comfort, this 5 bedroom hip and gable roof house plan is designed to deliver elegance, functionality, and spacious living. Covering a total floor area of 321 square meters, this impressive two storey home features a classic 30 degree pitched roof, generous interior spaces, multiple private balconies, and a thoughtfully planned layout ideal for contemporary family life.

The ground floor welcomes residents and guests through a large foyer that opens into spacious living and dining areas, creating an inviting atmosphere for everyday living and entertaining. The modern kitchen is equipped with a functional kitchen island and pantry, offering ample preparation and storage space. A large kitchen porch extends the living area outdoors, providing an ideal location for outdoor dining, relaxation, or family gatherings. Additional ground floor amenities include a laundry room, powder room, stair lobby, and an ensuite bedroom that can comfortably function as a guest suite.

The first floor provides a private family retreat designed for comfort and convenience. The luxurious master suite features a walk in closet, private ensuite bathroom, and an exclusive balcony. Three additional ensuite bedrooms provide privacy and comfort for family members, with each bedroom enjoying access to its own balcony. A spacious family room serves as the perfect setting for relaxation, entertainment, and quality family time, while the central stair lobby ensures efficient circulation throughout the upper level.

The hip and gable roof design with a 30 degree roof pitch adds character, durability, and timeless curb appeal, making this home suitable for a wide variety of settings. Its balanced proportions, elegant architectural details, and spacious rooms create a residence that feels both luxurious and welcoming.

Perfect for medium and large families, this house plan offers the ideal combination of traditional roof styling and modern living spaces, resulting in a home that is both practical and visually impressive.

Guaranteed Safe Checkout
  • Mpesa Icon



5 Bedroom Modern Hip and Gable Roof House Plan | 321 m² | Elegant 2 Storey Family Home

Spaces include:

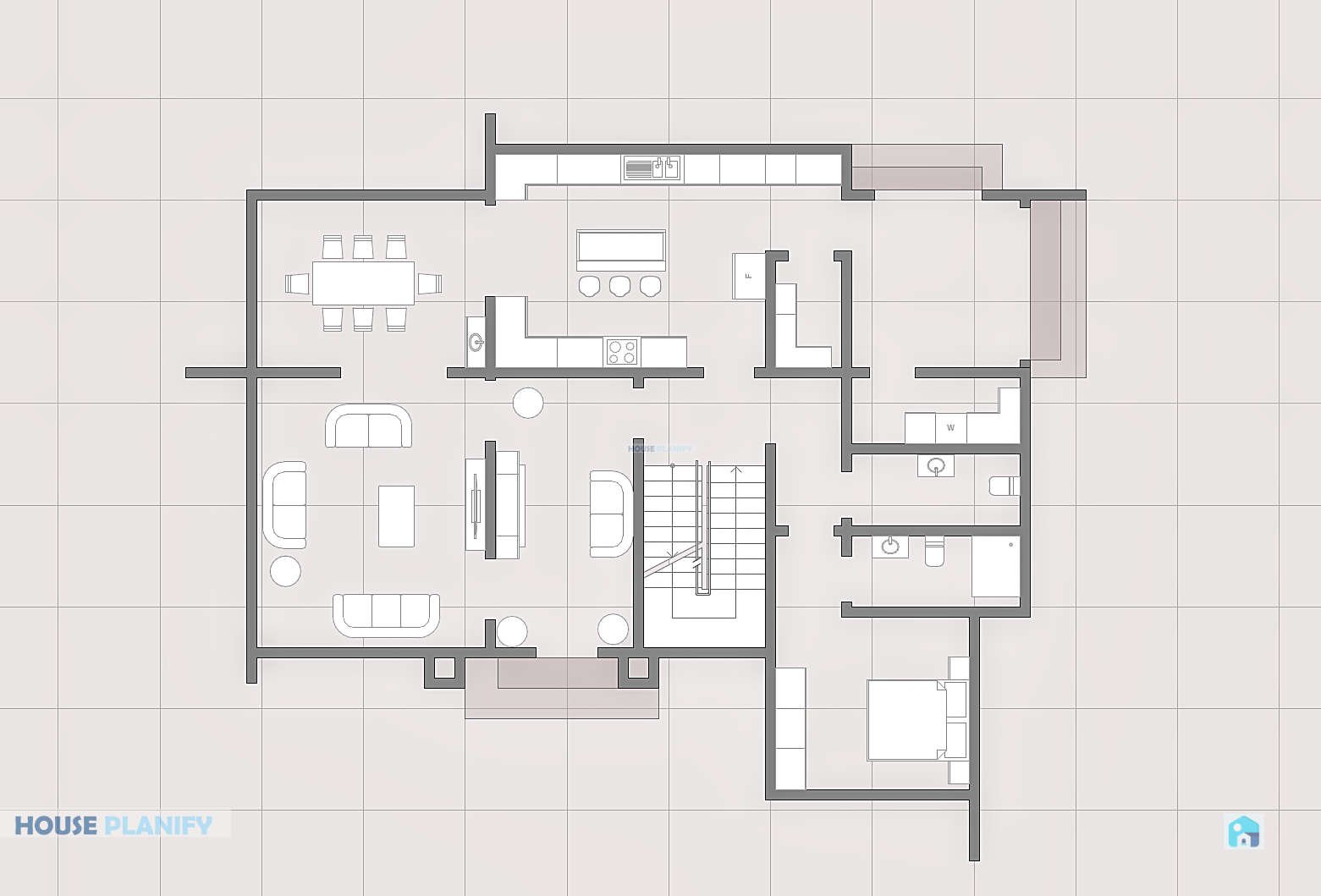

Ground floor

  1. Large foyer
  2. Living room
  3. Dining room
  4. Kitchen with kitchen island
  5. pantry
  6. Large kitchen porch
  7. Laundry
  8. Stair lobby
  9. Powder room
  10. Ensuite bedroom 01. This can also servce as the guest bedroom

1st floor

  1. Ensuite master bedroom with walk in closet. This bedroom also comes with its own dedicated balcony
  2. Ensuite bedroom 02 with balcony
  3. Ensuite bedroom 03 with balcony
  4. Ensuite bedroom 04 with balcony
  5. Family room
  6. Stair lobby
Bedrooms

Floor Area

Roof Type

Storeys

Bedroom & Bath Features

, , , , ,

Kitchen & Utility Features

, , , , , ,

Home Features

Garage Bays

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

What's Included in this House Plan Drawing Set?

A complete drawing package prepared for construction clarity and ease.

✔ Included Drawings

1. Cover Sheet 2. Floor Plan 3. Foundation Plan 4. Roof Plan 5. Exterior Elevations 6. Building Sections 7. Electrical Layout 8. Plumbing Layout 9. Window Schedule 10. Door Schedule 11. Roof Details 12. Gutter Detail 13. Eave Details 14. Septic Tank Detail 15. Finishes Schedule 16. General Notes 17. Electrical Notes 18. Plumbing Notes 19. 3D Renders 20. Other Misc Details

✖ Not Included

1. Architectural & Engineering Stamps 2. Site Plan (land dependent) 3. Structural Calculations 4. BOQ & Contractor Pricing

📦 After Purchase

1. Instant download via account 2. All drawings in one PDF 3. Recommended print: A3
