Flat Roof 5 Bedroom Modern Maisonette House Plan – 2511C

$459.00

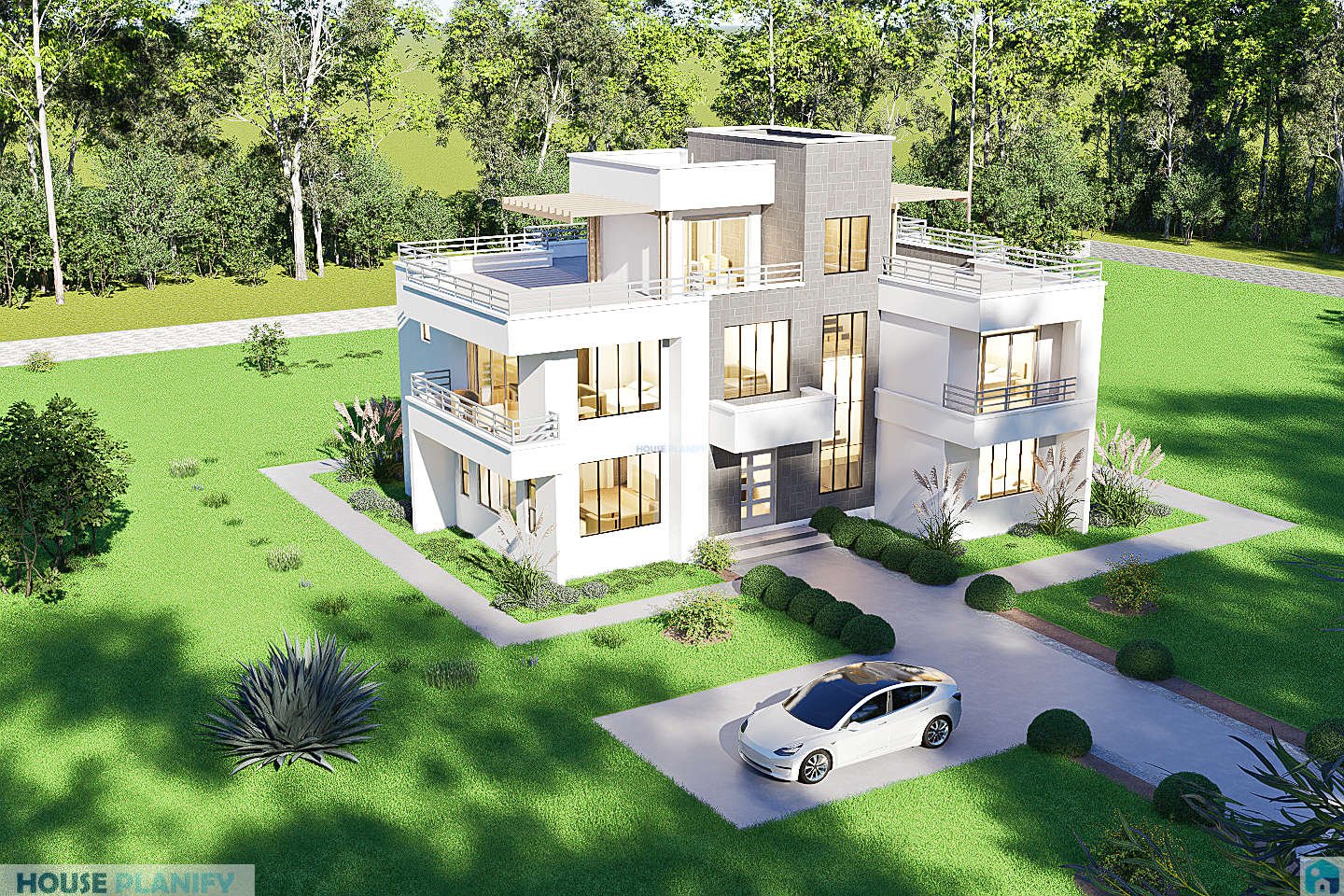

Experience contemporary luxury with this spacious 5 bedroom modern house plan, thoughtfully designed to combine elegance, comfort, and functionality. Covering a total floor area of 427 square meters, this impressive two storey residence features generous living spaces, large windows that maximize natural light, and a stunning rooftop terrace that creates the perfect setting for relaxation, entertaining, or enjoying panoramic views.

The ground floor welcomes you through a large foyer that leads into an expansive living room and dining area, creating a warm and inviting environment for family gatherings and social occasions. The modern kitchen is designed as the heart of the home, complete with a central kitchen island, ample workspace, a pantry for additional storage, and a large kitchen porch that extends the living experience outdoors. Additional ground floor amenities include a laundry room, powder room, stair lobby, and a spacious ensuite bedroom that can comfortably serve as a guest suite.

The first floor is dedicated to private family living. The luxurious master suite features a walk in closet, a private ensuite bathroom, and its own exclusive balcony. Three additional ensuite bedrooms provide comfort and privacy for family members, with each bedroom enjoying access to a private balcony. A centrally located family room offers a comfortable space for relaxation, entertainment, or quality family time, while the stair lobby provides efficient circulation throughout the upper level.

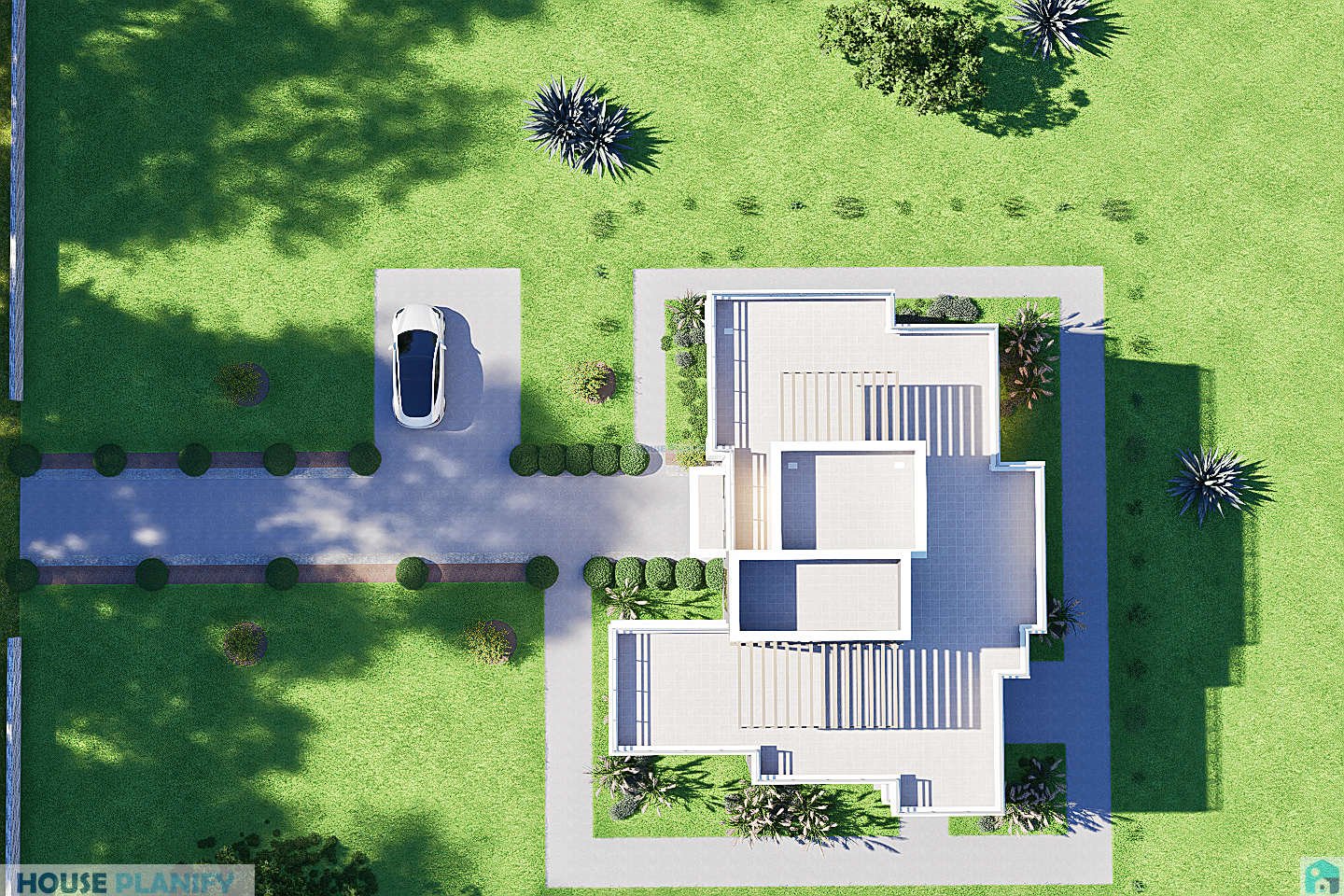

One of the home’s standout features is its rooftop level, which includes a dedicated office, an expansive flat roof terrace, and a stylish pergola. This versatile outdoor space can be used for entertaining guests, outdoor dining, relaxation, or creating a private retreat above the main living areas.

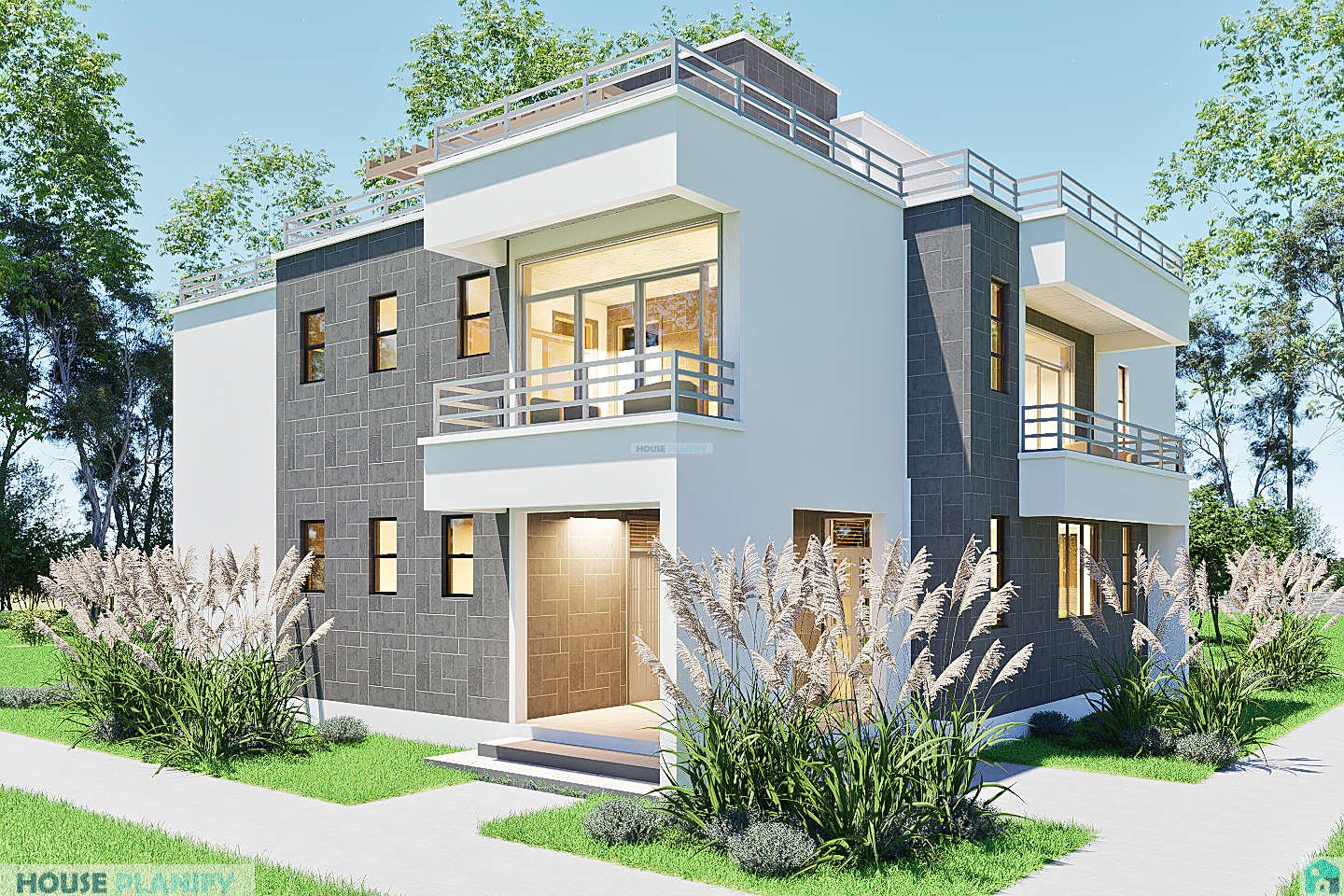

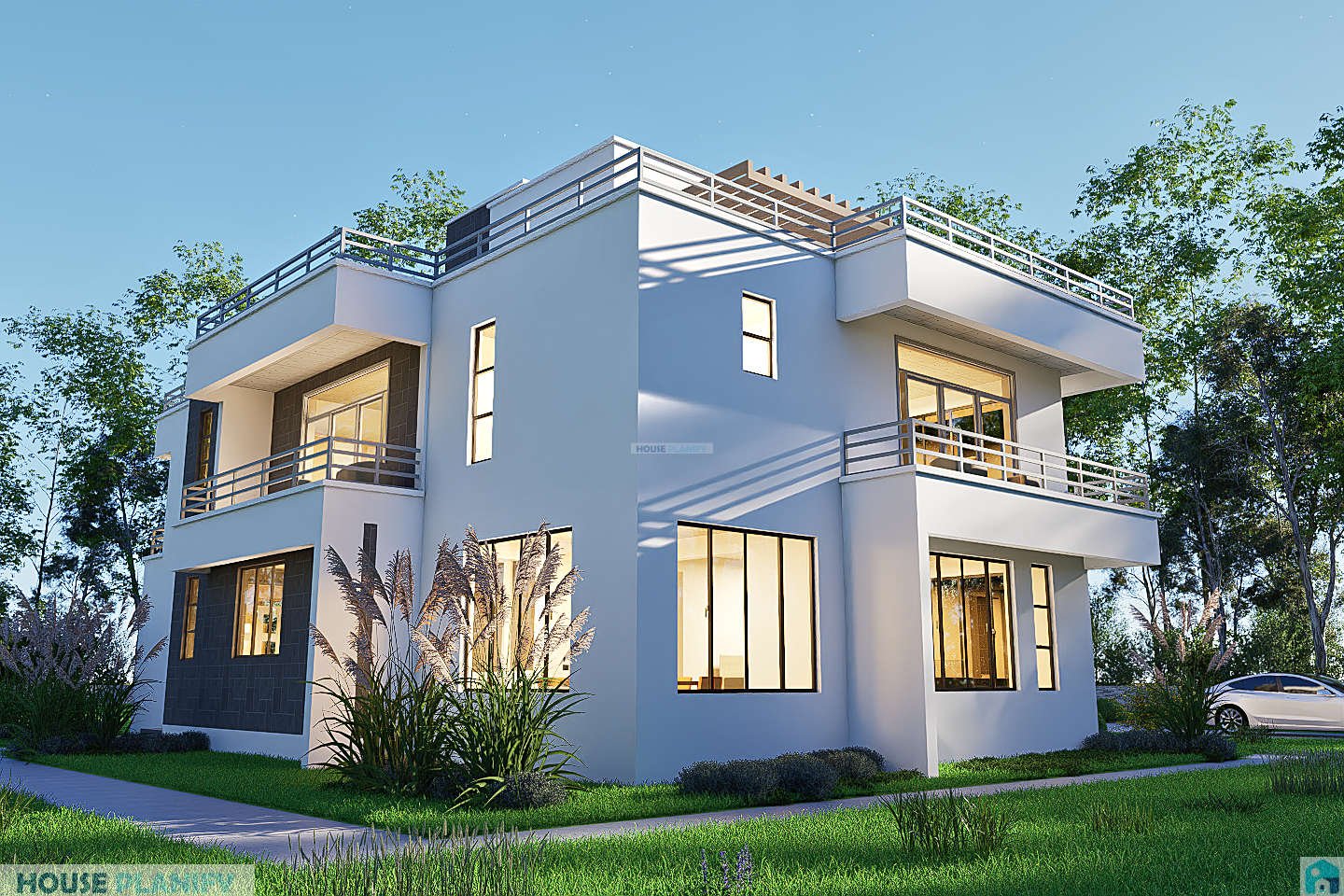

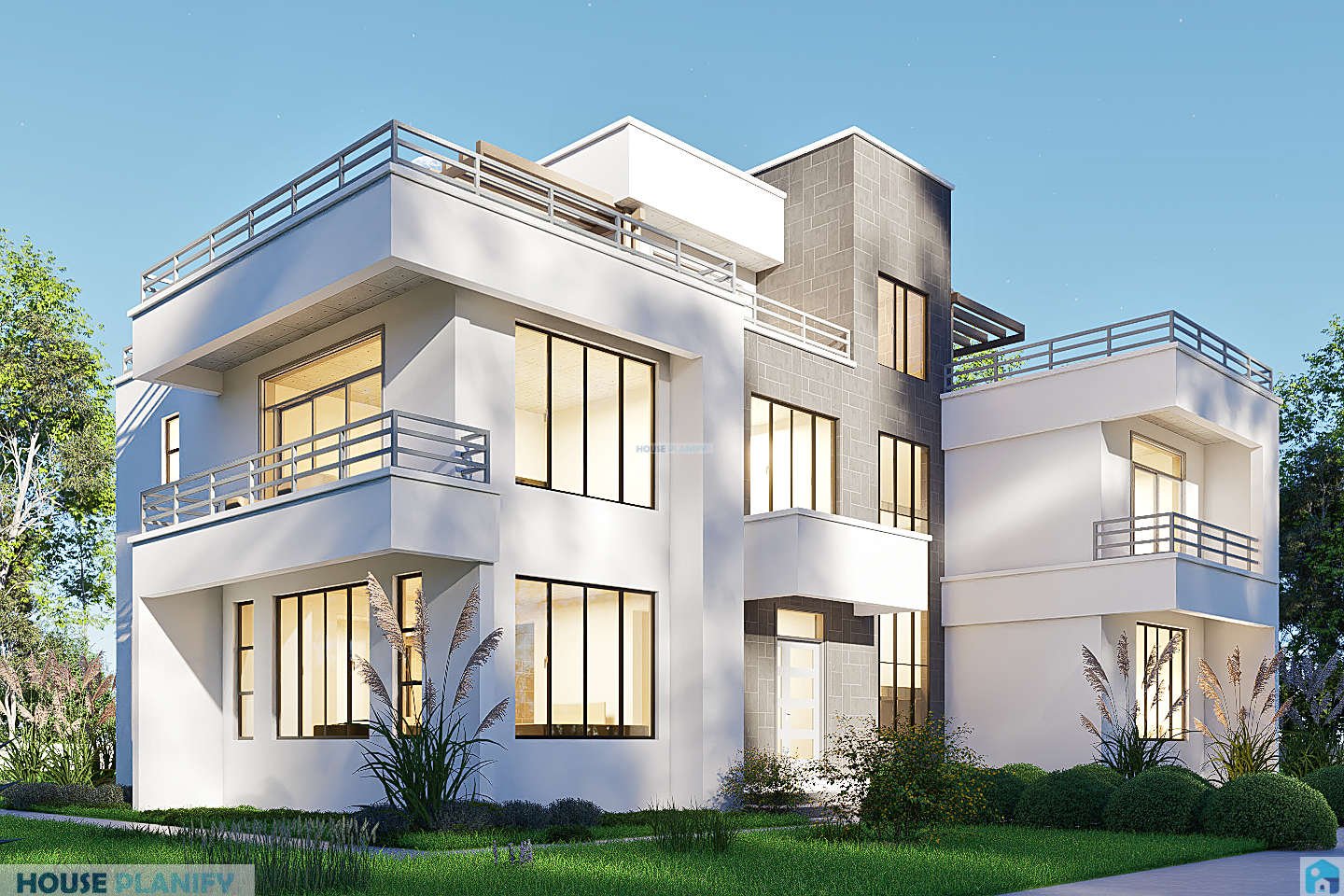

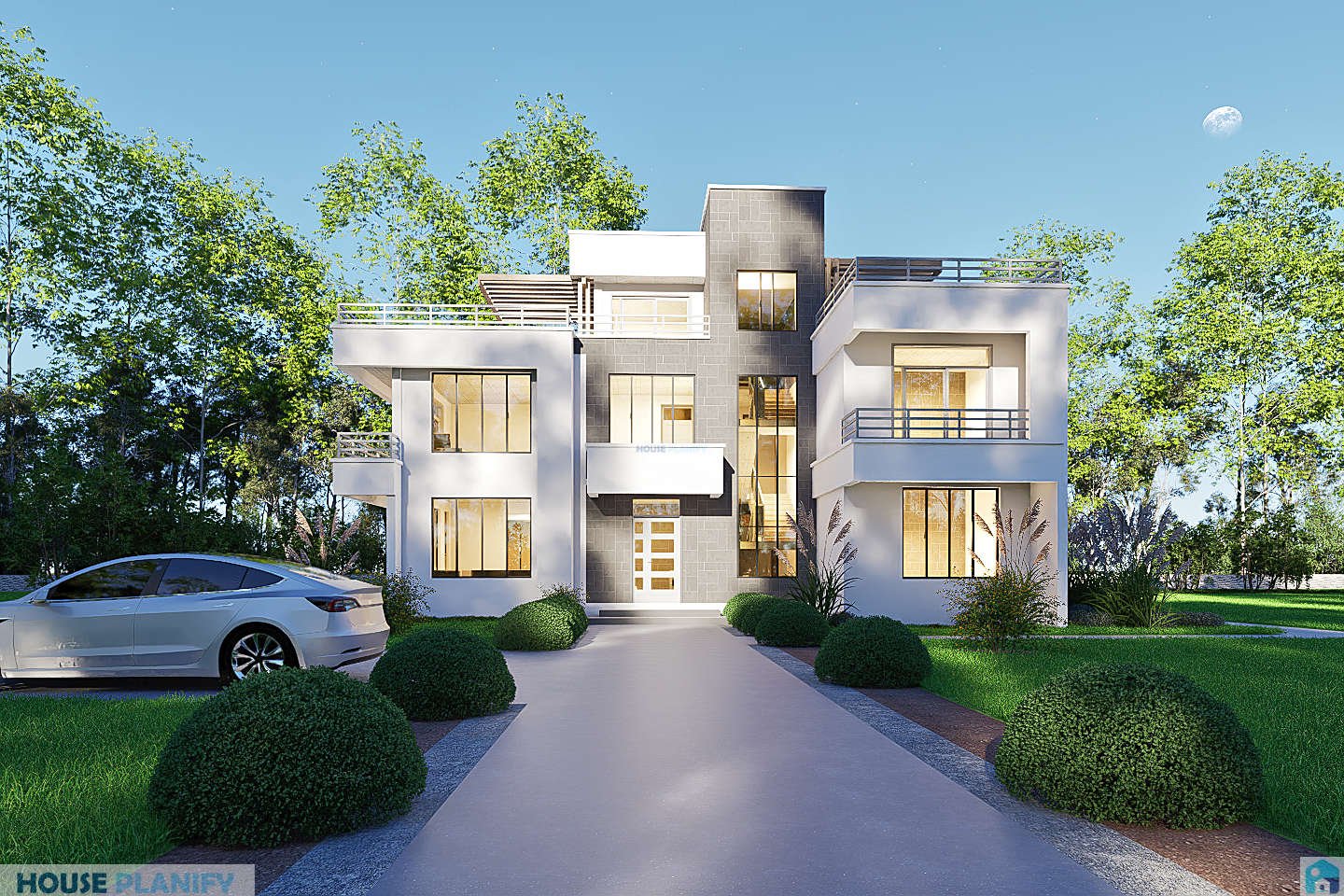

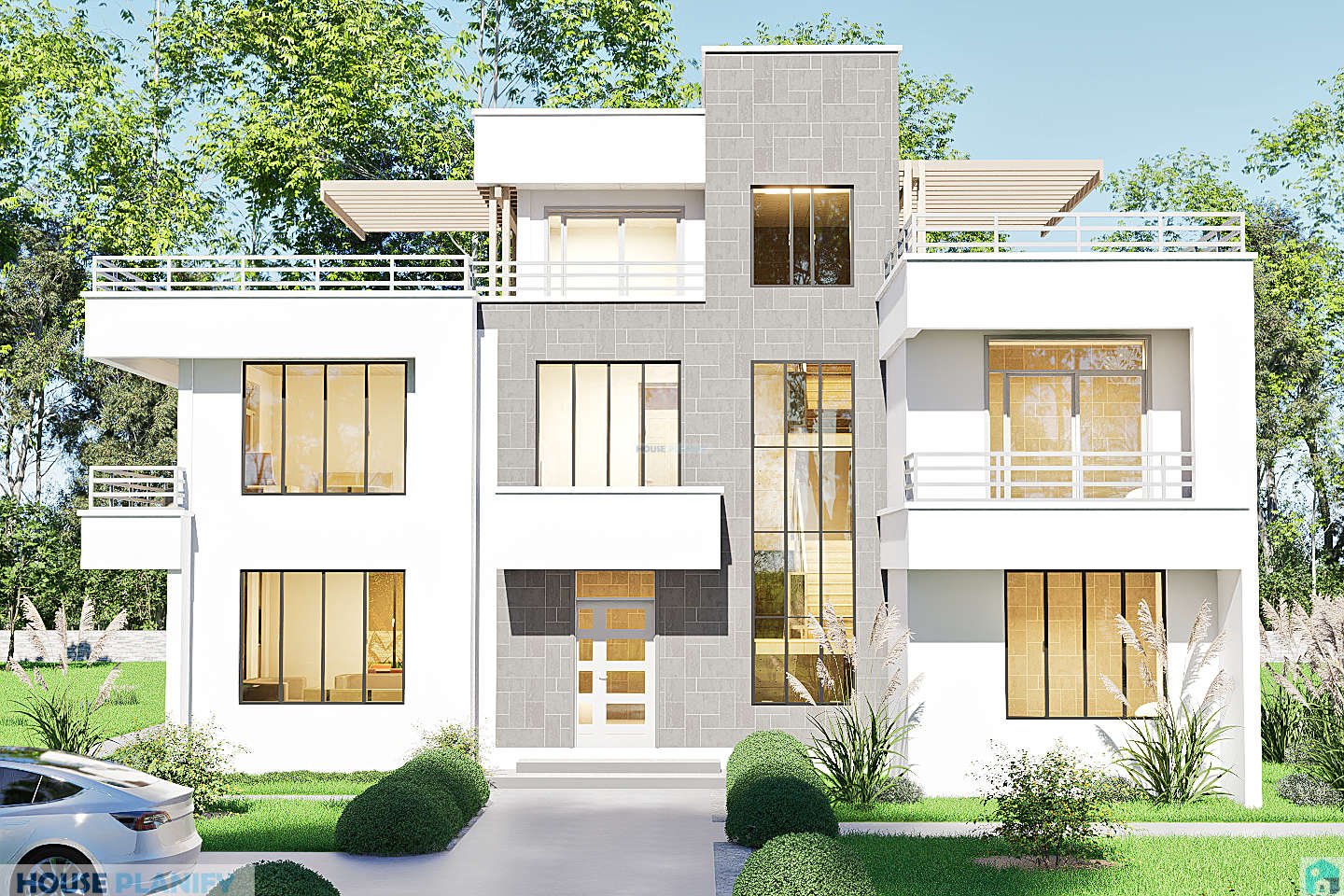

With its clean contemporary architecture, spacious layout, multiple balconies, and extensive use of large windows, this home delivers a bright, airy, and sophisticated living experience suited to modern families seeking both luxury and practicality.

Guaranteed Safe Checkout
  • Mpesa Icon

House Plan Highlights

• 5 Spacious Ensuite Bedrooms
• Modern Flat Roof Architecture
• 2 Storey Design
• Large Entrance Foyer
• Spacious Living Room
• Dedicated Dining Room
• Modern Kitchen with Island
• Pantry Storage Room
• Large Kitchen Porch
• Laundry Room
• Powder Room
• Family Room
• Walk In Closet in Master Suite
• Private Master Bedroom Balcony
• Private Balconies for Additional Bedrooms
• Dedicated Home Office
• Rooftop Flat Roof Terrace
• Outdoor Pergola
• Large Windows for Natural Lighting
• Contemporary Open and Spacious Layout

Ground floor

  1. Large foyer
  2. Living room
  3. Dining room
  4. Kitchen with kitchen island
  5. pantry
  6. Large kitchen porch
  7. Laundry
  8. Stair lobby
  9. Powder room
  10. Ensuite bedroom 01. This can also servce as the guest bedroom

1st floor

  1. Ensuite master bedroom with walk in closet. This bedroom also comes with its own dedicated balcony
  2. Ensuite bedroom 02 with balcony
  3. Ensuite bedroom 03 with balcony
  4. Ensuite bedroom 04 with balcony
  5. Family room
  6. Stair lobby

Roof Terrace

  1. OFFICE
  2. FLAT ROOF TERRACE
  3. PERGOLA

Structure

Reinforced Concrete Columns

Natural Stone strip foundation

Reinforced concrete strip foundation footing

Reinforced  concrete ground floor slab

Masonry walling

RC beam

Lighting and Electricals

Ceiling Lights

Wall Lights

Feature lighting in living room

Fluorescent ceiling light in kitchen

Waterproof external wall lights.

Multiple power outlets per room

Dedicated TV outlet

Heavy duty power outlets in kitchen and laundry

Two way electrical light switches in bedrooms

Two way light switches in living room,. kitchen and dining

Plumbing

Hot and cold water system

Solar water heater

Robust Septic system

Cold water storage tank

Inspection chambers

Materials and Finishes

Non slip ceramic floor tiles in porches

Matt Ceramic floor tiles

1st grade wall paint

Gypsum celling board

Non slip ceramic tiles in wet areas

Polished Ceramic wall tiles in kitchen

Glossy ceramic wall tiles in bath and other wet areas

Bedrooms

Bedroom & Bath Features

, , , , ,

Garage Bays

Floor Area

Home Features

,

Kitchen & Utility Features

, , , , , ,

Outdoor Features

, ,

Roof Type

Storeys

,

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

What's Included in this House Plan Drawing Set?

A complete drawing package prepared for construction clarity and ease.

✔ Included Drawings

1. Cover Sheet 2. Floor Plan 3. Foundation Plan 4. Roof Plan 5. Exterior Elevations 6. Building Sections 7. Electrical Layout 8. Plumbing Layout 9. Window Schedule 10. Door Schedule 11. Roof Details 12. Gutter Detail 13. Eave Details 14. Septic Tank Detail 15. Finishes Schedule 16. General Notes 17. Electrical Notes 18. Plumbing Notes 19. 3D Renders 20. Other Misc Details

✖ Not Included

1. Architectural & Engineering Stamps 2. Site Plan (land dependent) 3. Structural Calculations 4. BOQ & Contractor Pricing

📦 After Purchase

1. Instant download via account 2. All drawings in one PDF 3. Recommended print: A3
Shopping Cart

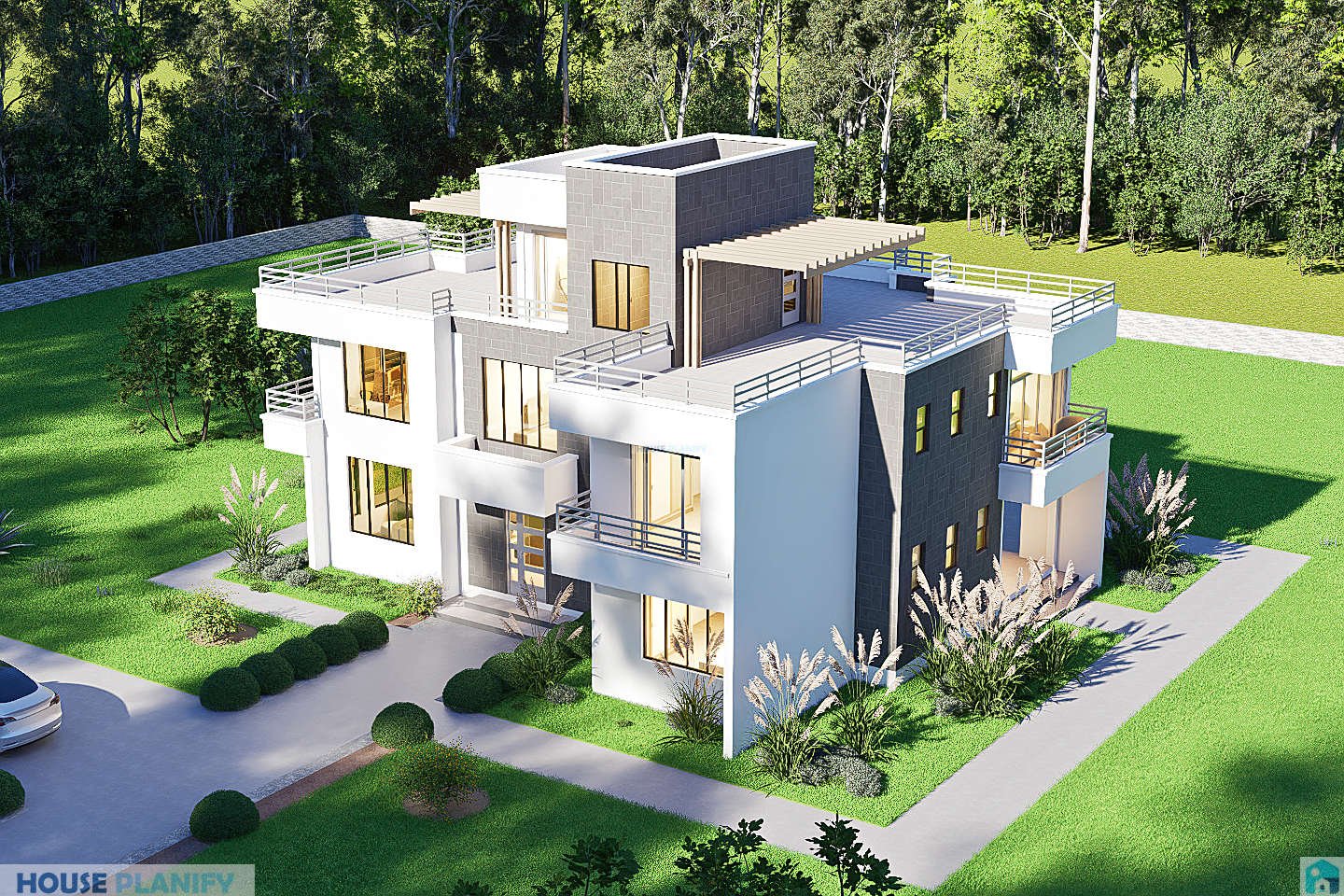

2511C modern flat roof maisonette birds eye viewFlat Roof 5 Bedroom Modern Maisonette House Plan – 2511C
